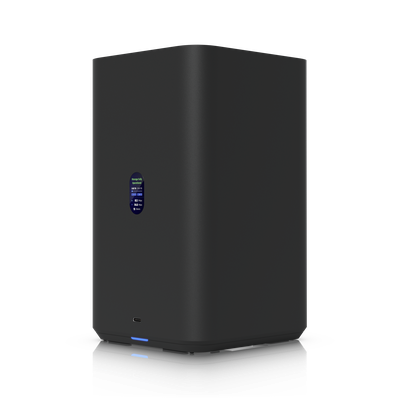

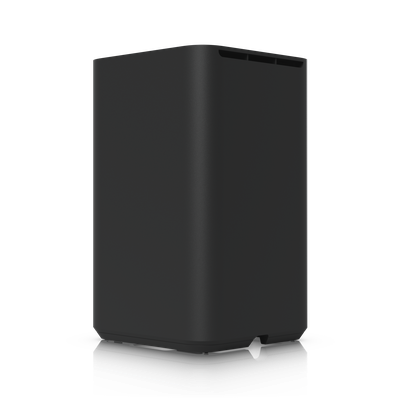

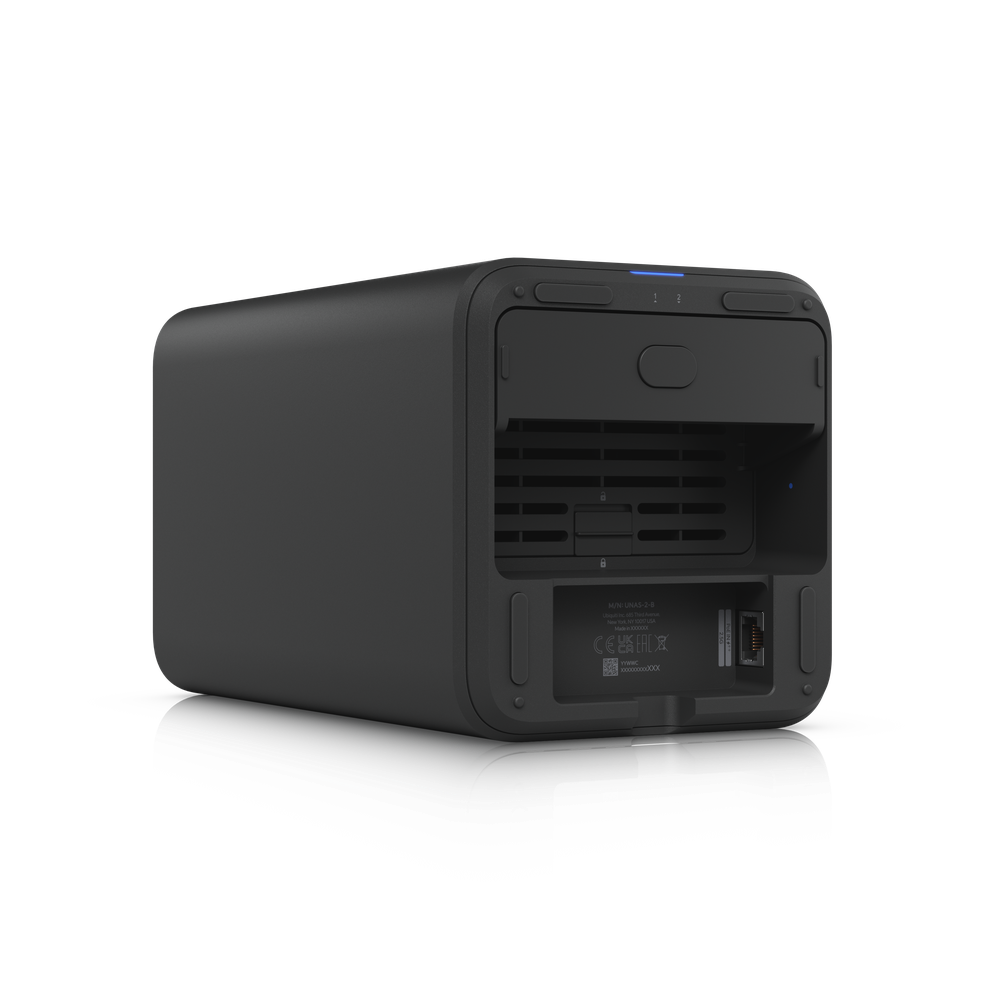

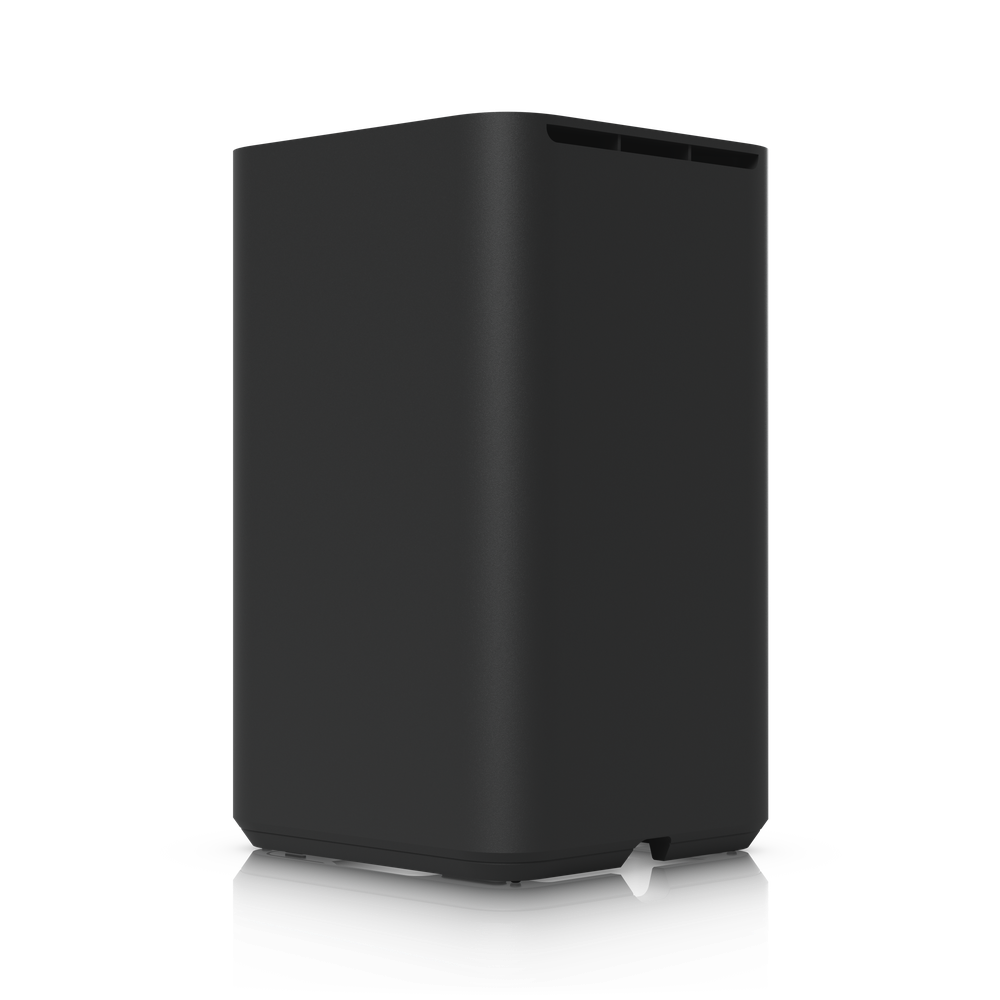

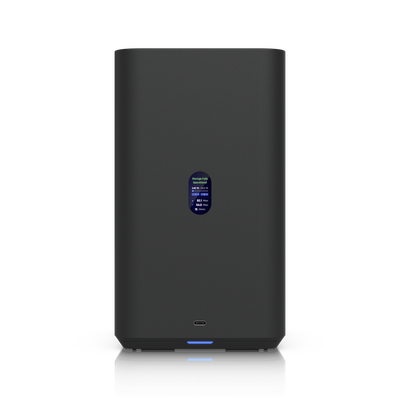

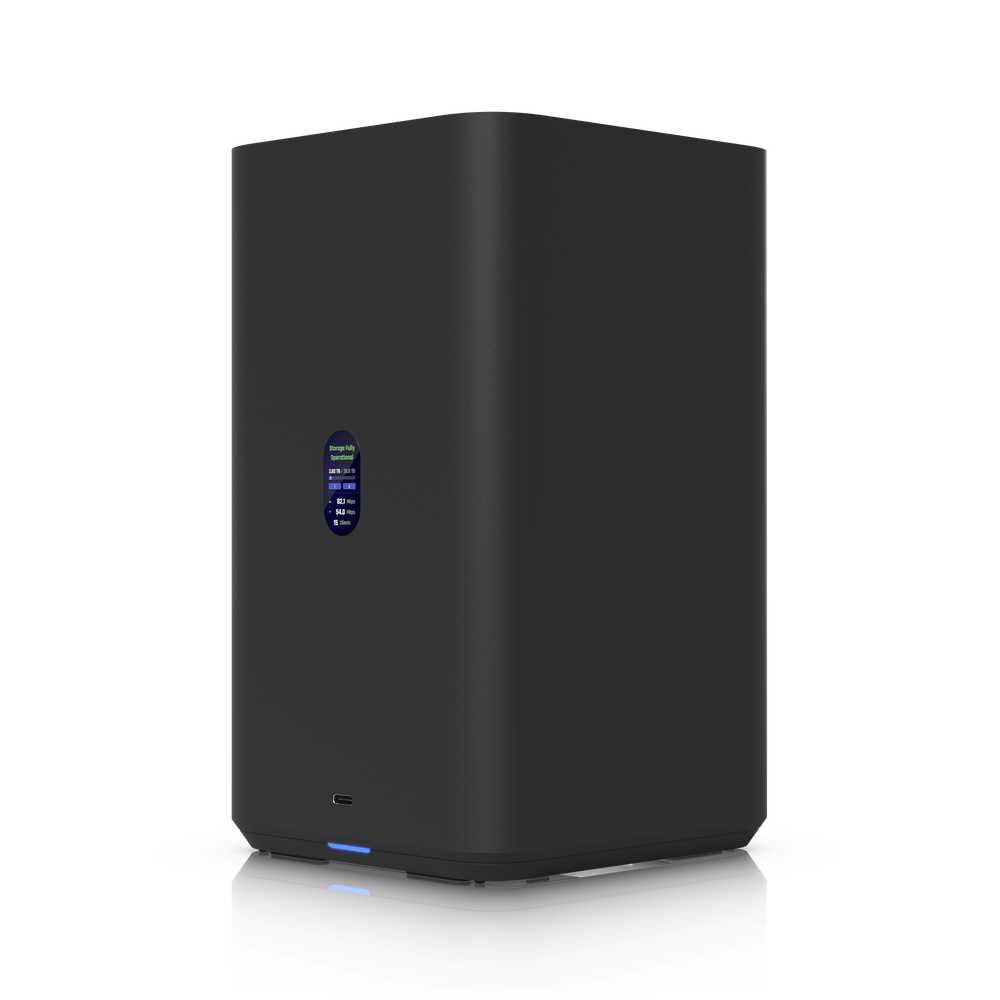

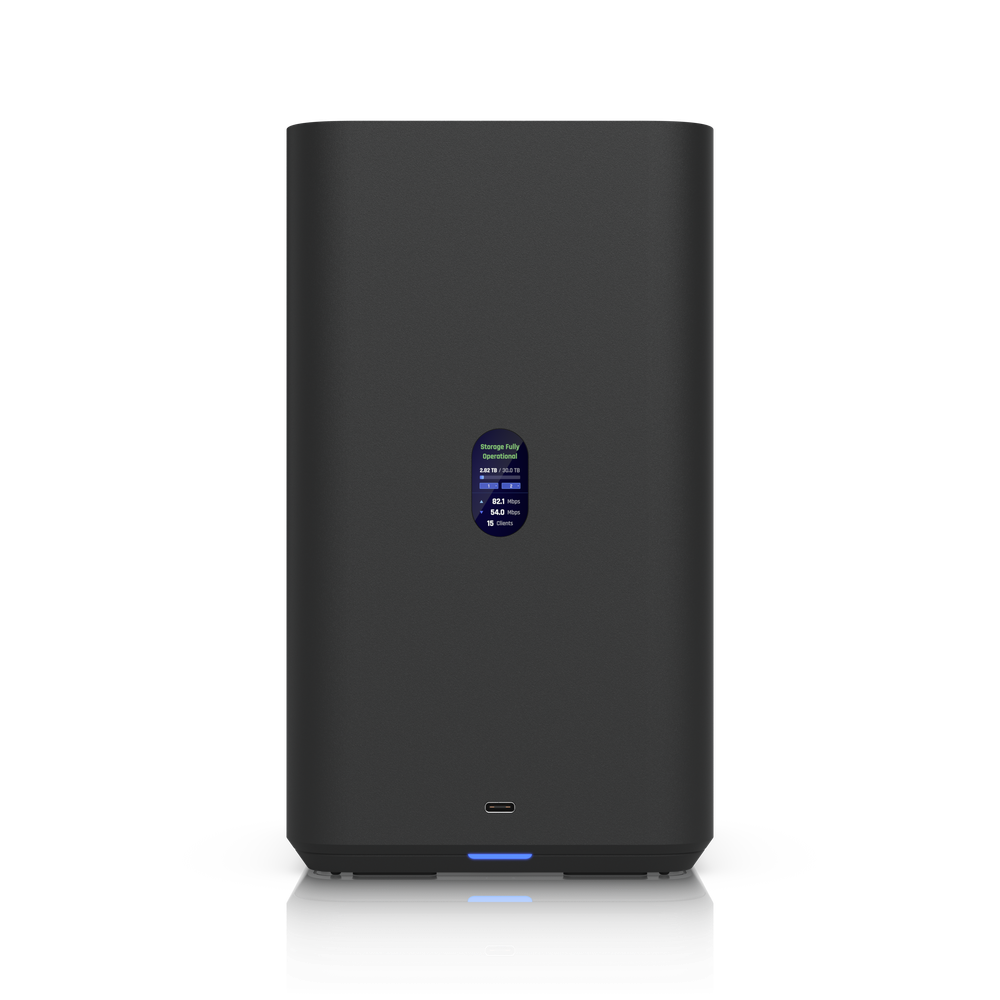

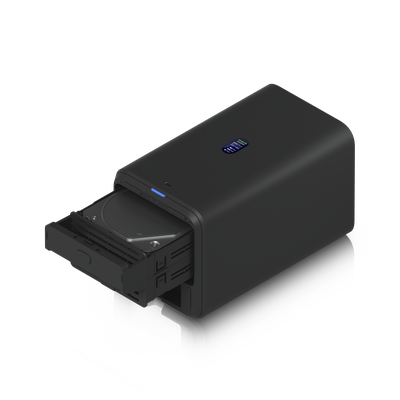

Reimagined desktop NAS in a compact footprint

Tech Specs

Dimensions

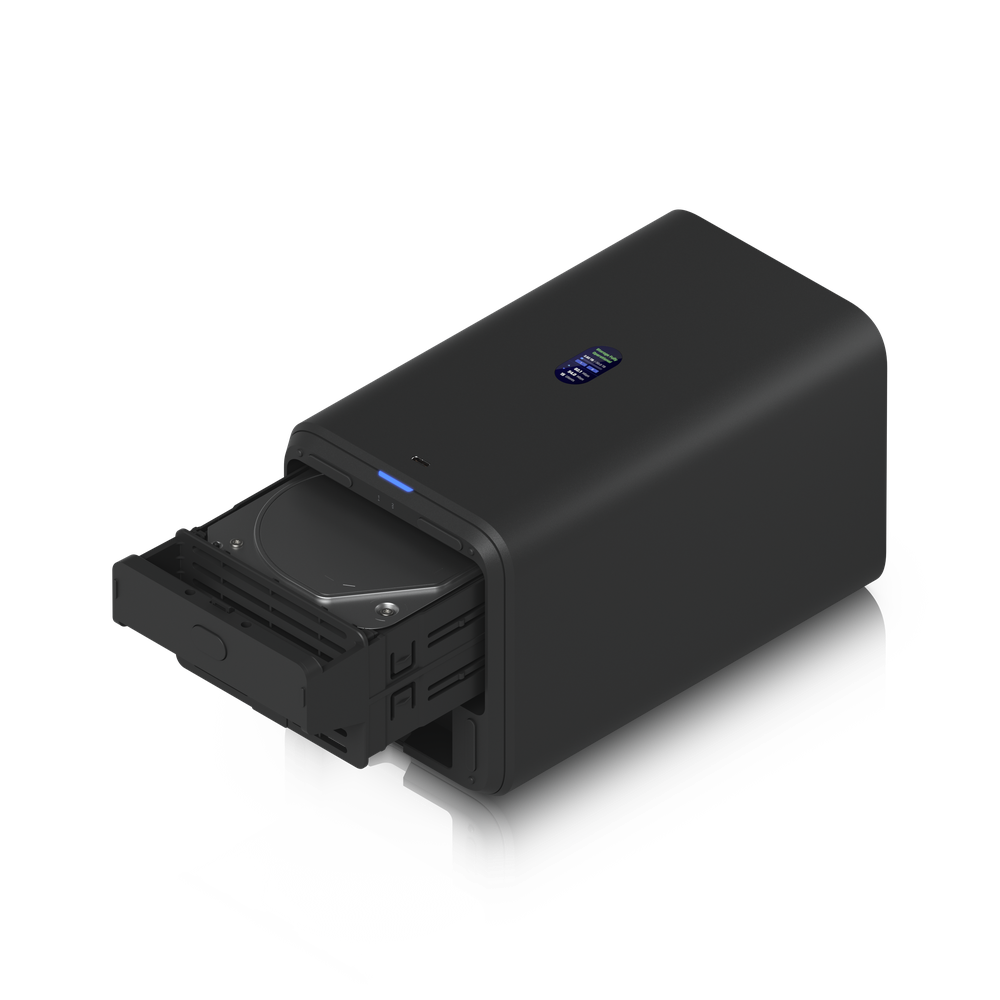

135 x 129 x 223.7 mm(5.3 x 5.1 x 8.8")Storage Capacity(2) 3.5" drive baysNetworking Interface(1) 2.5 GbE RJ45 (2.5G/1G/100M/10M)Expansion Port(1) 5 Gbps USB-CForm FactorDesktop

Hardware

Hard Drive Capacity(2) 3.5" HDD supportUSB Drive✓Max. Power Budget for Drives52WMax. Power Consumption60WPower MethodPoE++Power Supply60W PoE++ adapter (Included)ProcessorQuad-Core ARM® Cortex®-A55 at 1.7 GHzMemory4 GBManagementEthernetRF InterfaceBluetooth 4.1Display1.47" colour LCMWeight1.3 kg (2.85 lb)Enclosure MaterialPolycarbonateLEDs

System✓Ambient Operating Temperature-5 to 40° C (23 to 104° F)Ambient Operating Humidity10 to 90% noncondensingNDAA Compliant✓CertificationsFCC, CE, IC

Software

Application Requirements

UniFi DriveVersion 3.1.7 and later

Mobile AppiOS™ version 10.28.0 and laterAndroid™ version 10.28.3 and laterSupported File Protocols

NFS✓

SMB✓Supported features on unifi.ui.com

RAID TypeRAID 1

RAID GroupSingle

Personal Drive & Shared Drive✓

File Encryption✓

Backup to Remote UNAS✓

Backup to CIFS/SMB Server✓

Backup to Cloud Services (Google Drive, OneDrive, Dropbox, Amazon S3, Backblaze B2, Wasabi)✓

Snapshots✓

Share Links✓

Time Machine Backup✓

Client App Support✓

User Groups✓

Warranty Period

Warranty period: 12 months
Warranty terms: Return to base
