Compatibility

Studio Display XDR is compatible with the following Mac models with Apple silicon and macOS Tahoe 26.3.1 or later:

• 16-inch MacBook Pro (2021 and later)
• 14-inch MacBook Pro (2021 and later)
• 13-inch MacBook Pro (M1, 2020 and later)
• 15-inch MacBook Air (2023 and later)
• 13-inch MacBook Air (M1, 2020 and later)
• Mac Studio (2022 and later)
• Mac mini (2020 and later)
• Mac Pro (2023 and later)
• 24-inch iMac (2021 and later)

Mac models with M1, M1 Pro, M1 Max, M1 Ultra, M2 and M3 support Studio Display XDR at up to 60Hz. All other Studio Display XDR features are supported.

Studio Display XDR is compatible with the following iPad models with iPadOS 26.3.1 or later:

• iPad Pro (M4 and M5)
• iPad Pro 12.9-inch (3rd–6th generation)
• iPad Pro 11-inch (1st–4th generation)
• iPad Air (M2, M3 and M4)
• iPad Air (5th generation)

iPad Pro (M5) supports Studio Display XDR at 120Hz. All other compatible iPad models support it at 60Hz.

Tech Specs

Display

5K Retina XDR display

• 27-inch (diagonal) 5K Retina XDR display
• 5120-by-2880 resolution at 218 pixels per inch
• Mini-LED backlight with 2304 dimming zones
• Up to 1,000 nits brightness (SDR)
• 2,000 nits peak1 brightness (HDR)
• 120Hz refresh rate and Adaptive Sync
• Support for 1 billion colours
• P3 + Adobe RGB wide colour gamuts
• True Tone technology

Reference Modes

Available reference modes:

• Studio Display XDR (P3-2000 nits)
• Studio Display XDR (P3 + Adobe RGB-2000 nits)
• HDR Video (P3-ST 2084)
• HDTV Video (BT.709-BT.1886)
• NTSC Video (BT.601 SMPTE-C)
• PAL and SECAM Video (BT.601 EBU)
• Digital Cinema (P3-DCI)
• Digital Cinema (P3-D65)
• Design and Print (P3-D50)
• Design and Print (Adobe RGB-D50)
• Photography (P3-D65)
• Photography (Adobe RGB-D65)
• HDR Photography (P3-D65)
• Internet and Web (sRGB)

Camera

• 12MP Center Stage camera with Desk View

Audio

• High-fidelity six-speaker system with force-cancelling woofers
• Wide stereo sound
• Support for Spatial Audio when playing music or video with Dolby Atmos
• Studio-quality three-mic array with high signal-to-noise ratio and directional beamforming
• Support for “Hey Siri”

Connections

Two Thunderbolt 5 ports (up to 120 GBs) and two USB-C ports (up to 10 GBs)

• One upstream Thunderbolt 5 port () for host (with 140W host charging)
• One downstream Thunderbolt 5 port () for connecting high-speed accessories or daisy-chaining additional displays
• Two USB-C ports (up to 10 Gbps) for connecting peripherals, storage and networking

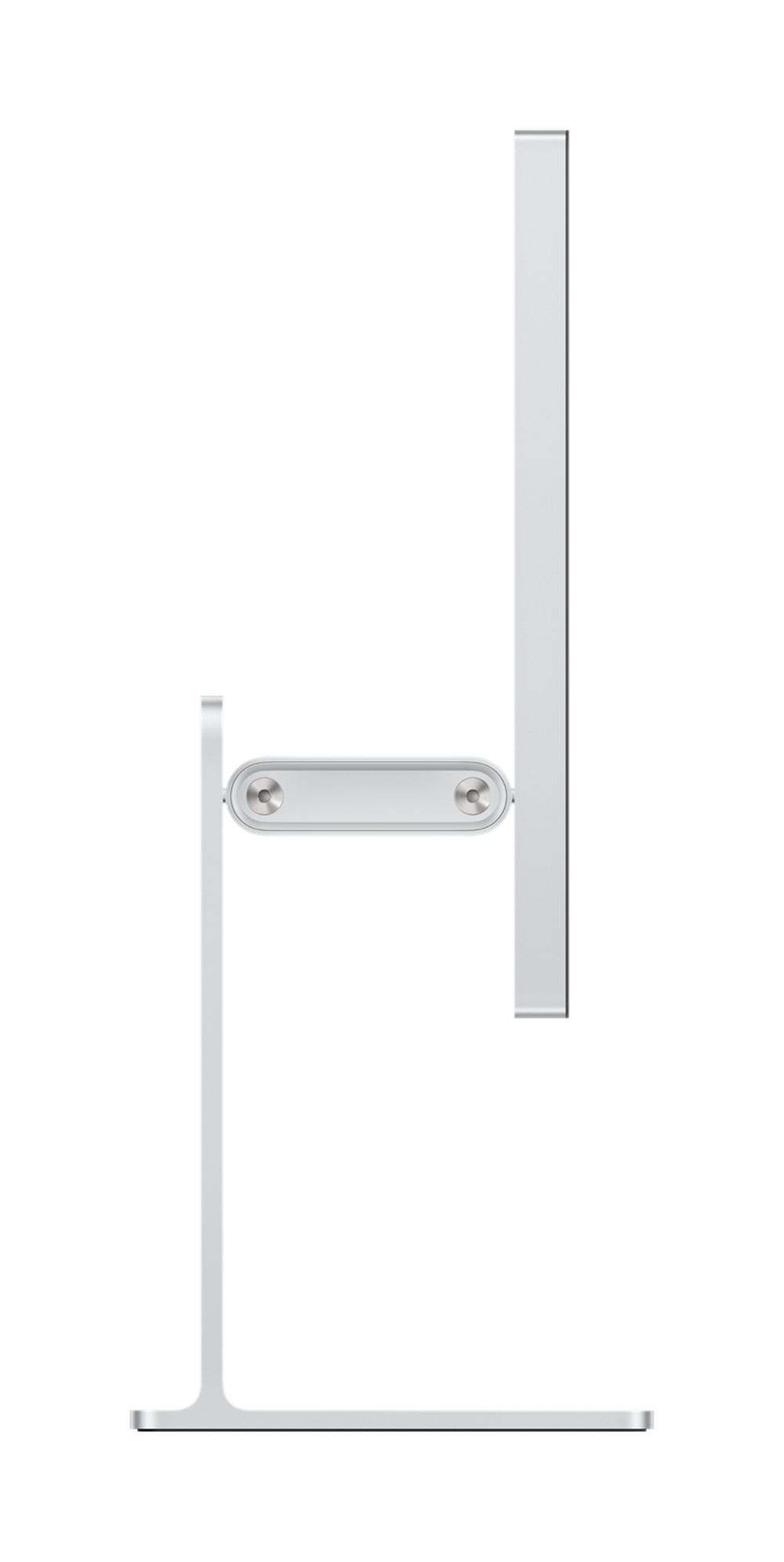

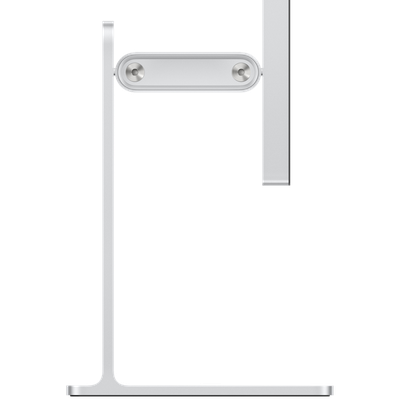

Stand

Tilt- and height-adjustable stand

• Tilt: −5° to +25°
• Height adjustment: Total of 105 mm
• Orientation: Landscape

Size and Weight

• Height (bottom position): 47.8 cm (18.8 inches)
• Width: 62.3 cm (24.5 inches)
• Height (top position): 58.3 cm (23.0 inches)
• Weight: 8.5 kg (18.7 pounds)2
• Depth: 21.4 cm (8.4 inches)

What's in the box

• Studio Display XDR
• Thunderbolt 5 Pro cable (1 m)

Warranty Period

Warranty period: 12 months
Warranty terms: Return to base
